Xiamen Hee Industrial Belt Co., Ltd. is one of the most professional manufacturers and suppliers of banded wrappedvbelt in China. With abundant experience, we warmly welcome you to buy high quality banded wrappedvbelt at competitive price from our factory.

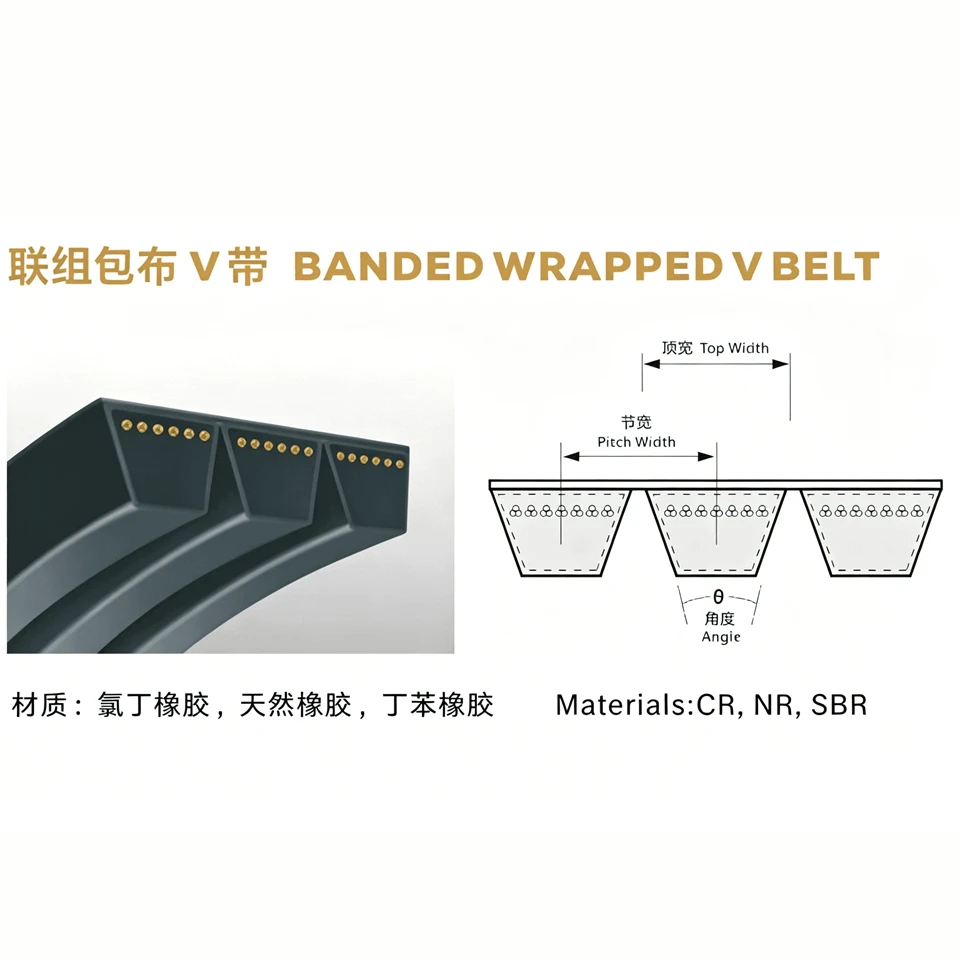

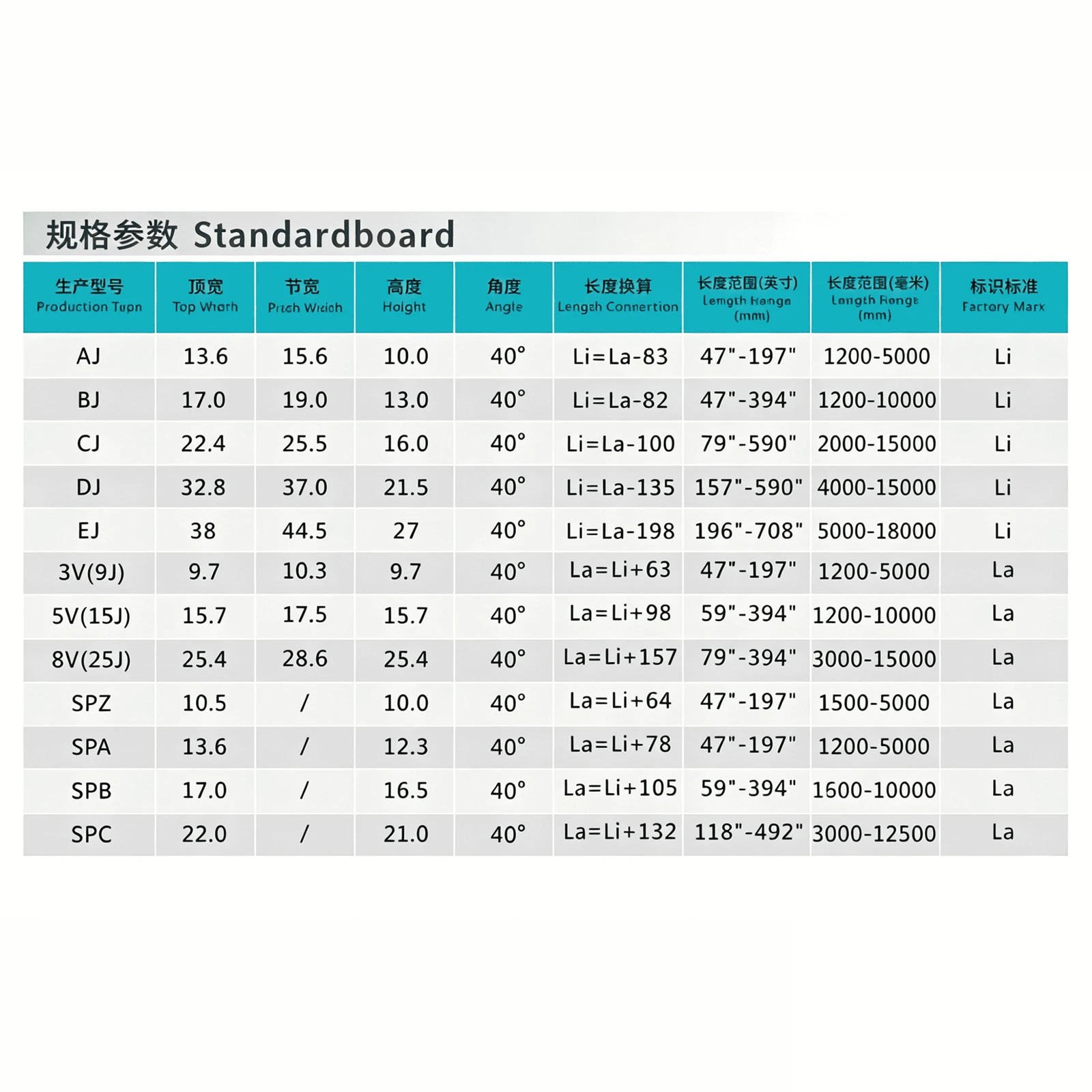

1. Product Overview This banded wrapped V-belt (joined V belt) is a multi-strand unified transmission belt bonded together on the top. It is manufactured with CR (Neoprene), NR (Natural Rubber) and SBR (Styrene Butadiene Rubber) compound, designed for heavy-load industrial power transmission systems. The unified top band effectively prevents individual belts from slipping, flipping or uneven tension during operation. 2. Core Material Advantage Formulated with CR + NR + SBR rubber blend: Natural rubber (NR): Excellent elasticity, high tensile strength and good flex resistance. Styrene butadiene rubber (SBR): Outstanding wear resistance, stable physical performance. Chloroprene rubber (CR): Superior ozone, aging and heat resistance, extending service life under harsh working conditions. 3. Complete Size Specifications We supply full series of standard models with 40° groove angle: AJ / BJ / CJ / DJ / EJ Series 3V(9J) / 5V(15J) / 8V(25J) Series SPZ / SPA / SPB / SPC Series Each model has fixed top width, pitch width and height, with clear length conversion formulas for Li / La marking standards. The available length range covers 1200mm to 18000mm to match diverse equipment requirements. 4. Key Product Features Integrated band structure: Synchronize tension for all strands, avoid single belt turnover and side wear. 40° standard V-angle: Perfect fit for matching pulley grooves, maximize friction transmission efficiency. Wrapped fabric outer layer: Boost abrasion resistance, protect inner rubber core from external damage. Wide size range: Compatible with light, medium and heavy-duty industrial machinery. 5. Application Scenarios Suitable for heavy-duty transmission equipment such as agricultural machinery, mining machines, construction equipment, industrial fans, compressors and other facilities requiring stable high-power transmission.
