PVK Logistic Belt
PVK CONVEYOR BELT
PVK conveyor belt (The "Wear-resistant King" in the logistics industry)
Today's PVK conveyor belts are available in a variety of sizes and are generally classified into surface-added and conventionally impregnated PVK conveyor belts. PVK conveyor belts are generally used in the airport logistics industry. The PVK conveyor belt is made of cotton fabric and its surface is made of PVK. Compared with other ordinary PVC conveyor belts, it has high wear resistance and cutting resistance. The average service life is 3-4 times longer. In the logistics industry, it is mainly used for the transportation of long-distance goods. The black PVK conveyor belt uses two layers of polyester yarn with lateral stability, 4.4 (KG/m2) per square weight, and a tensile strength (N/mm) of 15, allowing an operating temperature range (°C) of -20 to 80. With impact resistance and wear resistance.
Core performance advantages (Compared with ordinary PVC tapes)
| Performance dimension | PVK conveyor belt | Ordinary PVC conveyor belt |
|---|---|---|
| Wear resistance | It is 3 to 5 times that of PVC, and the DIN abrasion is ≤100mm³ | High wear and tear, prone to fuzzing and thread separation due to high-frequency friction |
| Impact/puncture resistant | It is strong and can withstand repeated impacts from wooden crates and heavy objects | Weak, sharp packages are prone to puncture and delamination |
| Service life | It is 3 to 4 times that of ordinary PVC tape, reducing replacement costs | Short and high-load scenarios require frequent replacement |
| Coefficient of friction | High, preventing packages from slipping or deviating | It is relatively low and prone to slipping |
| Flame-retardant/anti-static | Most models meet the standards of flame retardancy and anti-static | The common model does not have this feature |
Application scenarios
Logistics and express delivery sorting center
Cross-belt sorting machines, matrix lines, and pendulum wheel sorting lines are suitable for high-speed package circulation scenarios.
01
Airport baggage transportation
Luggage carousel, security check conveyor line, resistant to scratches from suitcase wheels.
02
E-commerce/warehousing and transportation
Large parcels and turnover box transportation, impact-resistant and puncture-proof.
03
Industrial heavy-duty conveying
Some packaging and waste recycling conveyor lines with high wear resistance requirements.
04
Selection parameters
Thickness
Common sizes include 3.0mm, 3.8mm, and 4.3mm. The thicker the thickness, the stronger the wear resistance, and it also needs to be compatible with the diameter of the roller.
01
Model

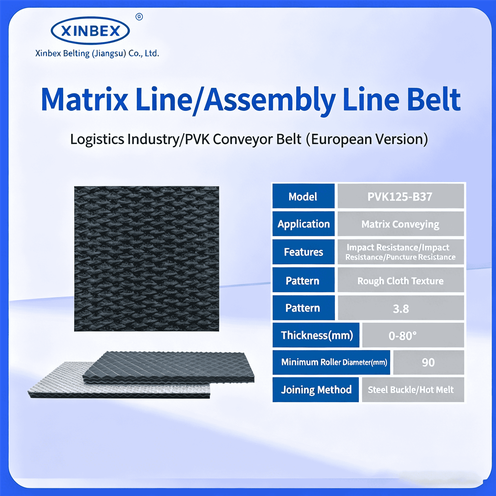

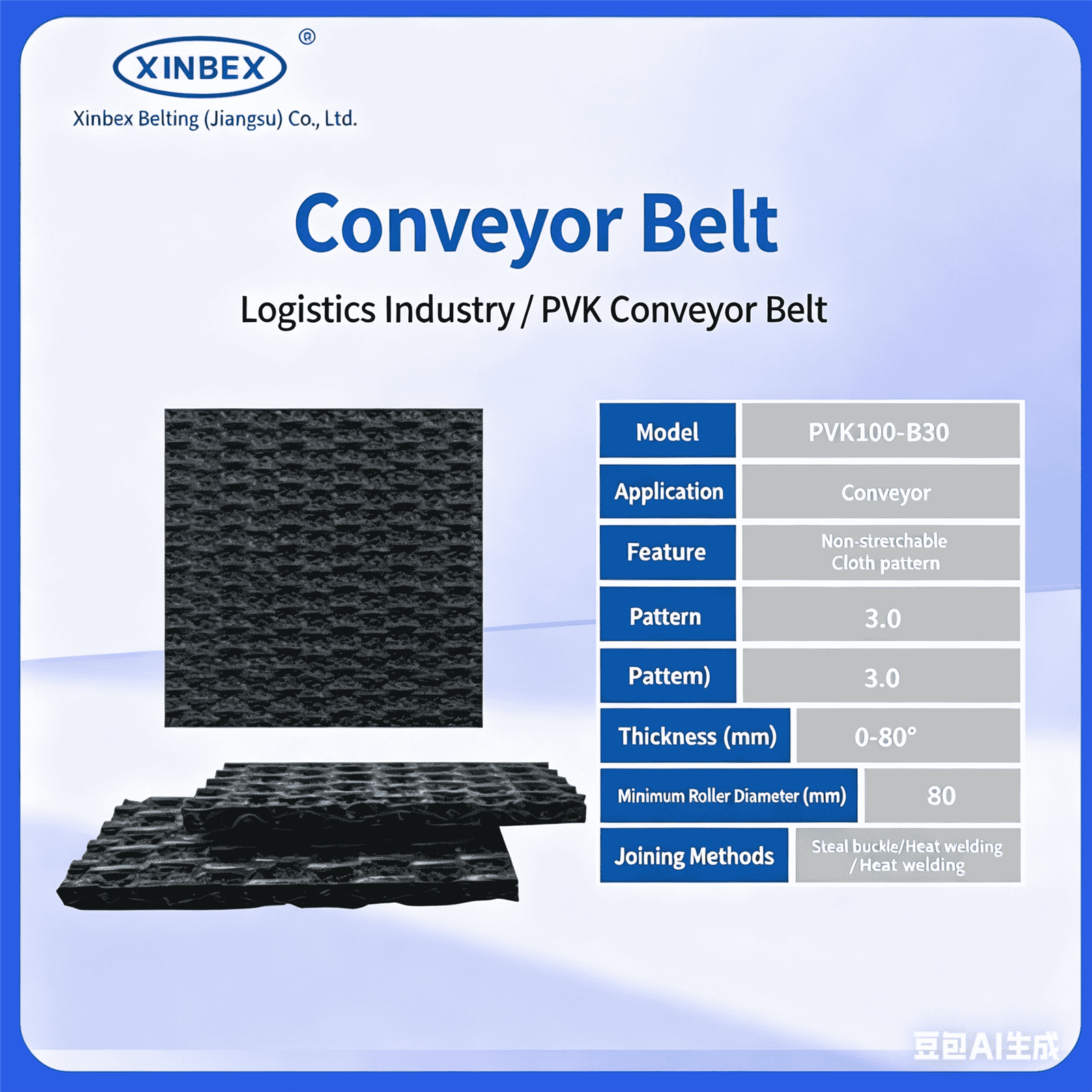

Such as PVK100 and PVK125, they represent the core strength grade. The higher the number, the higher the strength.
02
Applicable temperature
0-80℃, suitable for all conventional logistics scenarios.
03
Minimum drum diameter
80-90mm (slight differences among different models), if the drum diameter is too small, it is easy to cause the belt body to crack.
04
Key points for use and maintenance
Installation
Give priority to steel buckle joints to ensure the interface is flat and avoid protrusion at the joint, which may cause the sorting of jammed items.
01
Tension
The tension is moderate. If it is too loose, it is prone to slipping; if it is too tight, it will accelerate the fatigue of the belt body，
02
Clean
Regularly clean the surface debris to prevent sharp foreign objects from scratching the belt body，
03
Replace
When there is large-scale fuzzing, cracking or loose joints, replace them in time to avoid shutdown due to malfunction..
04
Many people confuse PVK with PVC tape. The essential difference between the two lies in their structure and manufacturing process
PVC tape: Layered structure, core + PVC coating, low cost but weak wear resistance and impact resistance.
PVK belt: Integral weaving + impregnated slurry, one-piece molding, highly wear-resistant and impact-resistant, specially designed for heavy-duty logistics scenarios.
Factory scale
The production base in Tong 'an, Xiamen covers an area of 20,000 square meters. The production base in Nantong covers an area of 35 mu, with a factory building area of 25,000 square meters. There are over 200 employees and more than 1,000 kinds of products in stock.
Production capacity
Daily output: 100,000 + advanced production lines with a width of 3 meters and 4 meters, 8 modern production lines and various processing equipment
Advanced equipment
To ensure the provision of high-quality products, we have imported professional equipment, laboratories and professional testing devices
Quality assurance
We have introduced advanced technology and production equipment. Our quality management system has passed the ISO9001.2008 product certification and SGS certification
Original manufacturer
With over 20 years of industry experience, we offer cost-effective industrial belt solutions and over a thousand products in stock
in one-stop service
Founded in 1998, XINBEX is a professional industrial belt company integrating R&D, production and service, and it owns its own brand XinBEX. Introduce advanced technologies and production equipment. The quality management system has been certified by ISO9001:2008, and the product quality has been certified by SGS. Xiamen XINBEX Industrial Belt Co., Ltd. offers not only high-quality products, but more importantly, continuous innovation and service, including
Cost-reducing solutions, collaborating with customers
Develop and apply new solutions;
Efficiency improvement plan;
Energy conservation and environmental protection solutions.
We are a reliable supplier of conveyor belts with a one-year warranty. We look forward to more cooperation
+
Xiamen Hee Industrial Belt Co., Ltd. is one of the leading pvk logistic belt manufacturers and suppliers in China. Feel free to buy pvk logistic belt from our factory. We must be your best choice!
