Xiamen Hee Industrial Belt Co., Ltd. is one of the most professional manufacturers and suppliers of 800 conveyor belt in China. With abundant experience, we warmly welcome you to buy high quality 800 conveyor belt at competitive price from our factory.

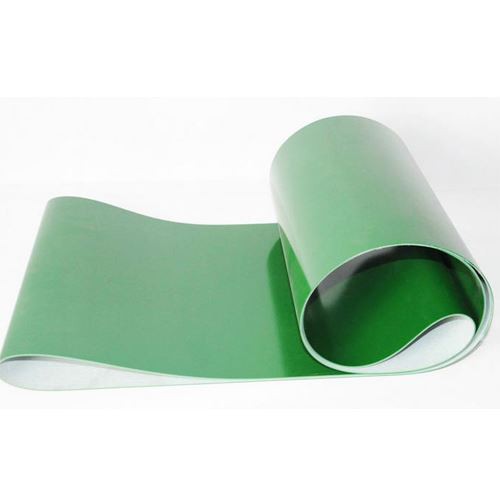

The 800mm wide PVC conveyor belt is one of the most commonly used standard width specifications in industrial automation and logistics transportation. It is made of polyvinyl chloride (PVC) as the surface material and polyester fabric as the core, and belongs to the light-duty conveyor belt.
I. Core Specifications (800mm wide)
Width: Standard 800mm (effective width approximately 780-790mm)
Thickness: Commonly used 2.0mm / 3.0mm / 4.0mm (1 to 4 layers of adhesive coating structure)
Color: Green (universal), white (food grade), black, blue
Strength grade: 680S / 800S (breaking strength 680-800 N/mm)
Temperature range: -10°C to +80°C
Applicable inclination Angle: Generally ≤ 16° (higher for patterned belts)
Ii. Structure and Materials
Core: High-strength polyester (PET)/nylon fabric, with tensile strength and low elongation
Covering layer: PVC is wear-resistant, oil-resistant, and resistant to weak acids and weak alkalis
Structure: Whole core/layered (1 fabric 1 glue ~ 3 fabrics 3 glue
Iii. Main Features
Economical and practical: High cost performance, easy maintenance, and long service life
Stable operation: Smooth conveying, low noise, and less prone to deviation

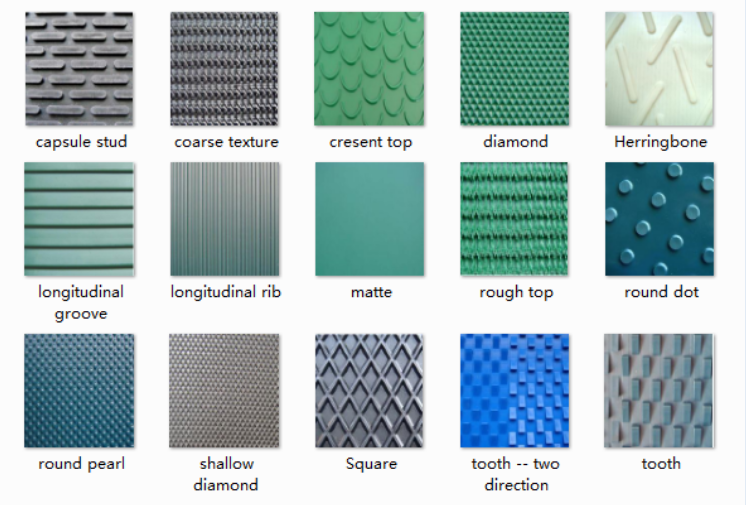

Diverse surfaces: flat/patterned (diamond, figure-eight, fishbone, etc.), anti-slip and anti-deviation
Hygiene and safety: Food-grade PVC (white) complies with FDA/EU standards
Easy to process: It can be thermoplastic spliced, punched, and equipped with baffles/skirts
Iv. Typical Applications (800mm wide)
Production lines: Electronics, food, packaging, medicine, light industry
Logistics sorting: Parcels, cartons, and boxed materials
Food industry: Bread, fruits and vegetables, snacks (white food grade)
Special: Flame-retardant and anti-static PVC (for underground coal mines and chemical industries)
V. Key Points for Selection (800mm Wide)
Thickness: 2 to 3mm for light load. For heavy loads or long distances, select 4 to 5mm
Surface: Flat (clean/small item); Patterns (climbing slopes/anti-slip/large objects)
Color: General green; Food is white. Dirt-resistant black
Joint: Hot-melt butt welding (strength ≥90%) or steel buckle (temporary/quick)
Summary: The 800mm wide PVC conveyor belt is an industrial belt with extremely strong versatility and the best cost performance. It covers light and medium load, normal temperature, and multi-industry conveying scenarios, and is the first choice for automated lines.
