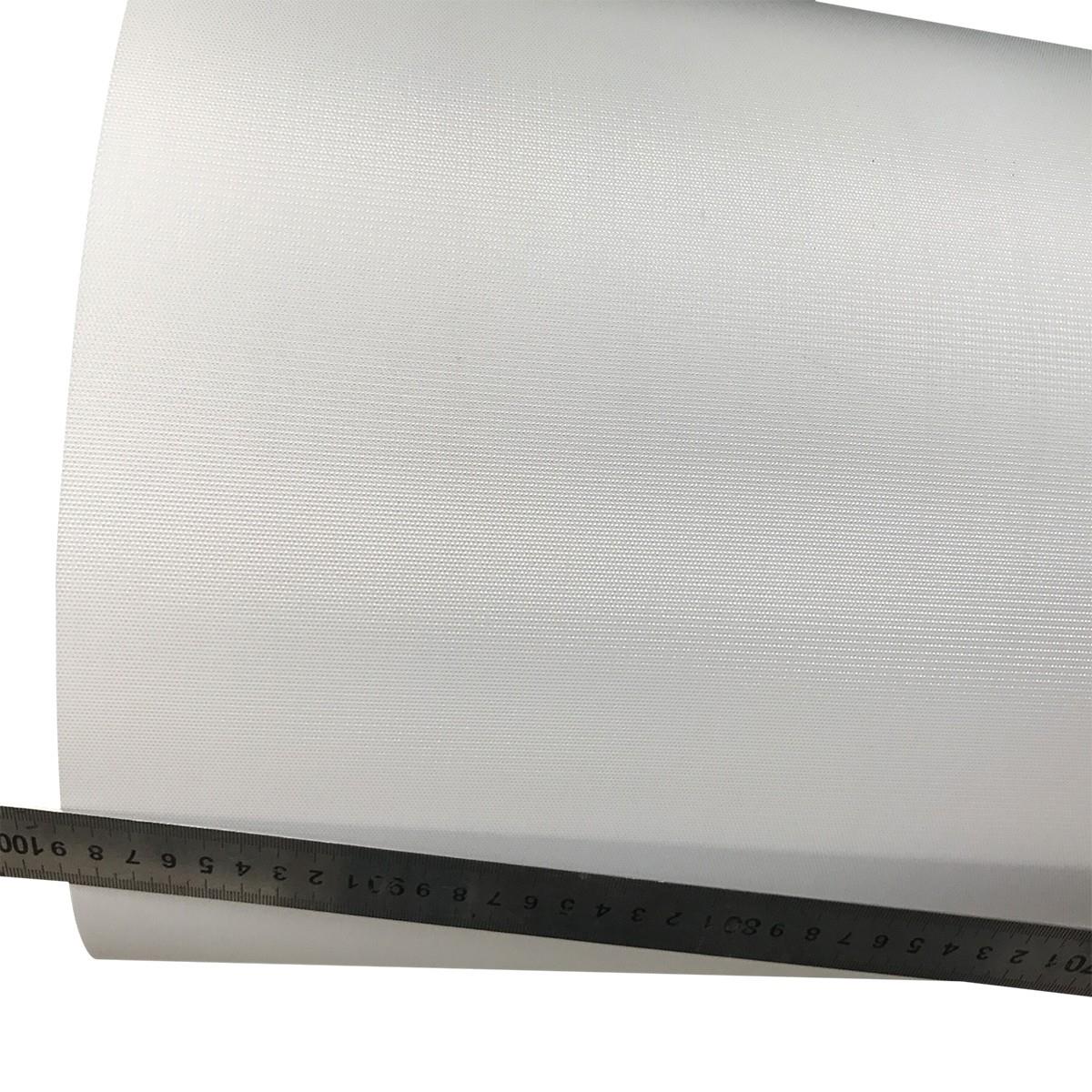

Flat White PU Conveyor Belt Food Grade

(Product type) UTB-W13 Technical belt data sheet Note The above data is all in the standard conditions (temperature 23 humidity 50%). The results obtained through laboratory tests are not necessarily the same as the actual use of the product, so the data is only for the examination Customized

Chat Now

    (Product type)UTB-W13


    Technical belt data sheet

    (General information)
    (product group)process and conveyor belting
    (Market segment)electronics , printing ,logistics etc.
    (Belt support)(Rollers)(Flat)


    (Belt construction)
    (Coating material)TPU(Layers)1
    (Fabric tension laner)(Polyester)(Layers)2
    (Topside)TPU(Color)white
    (Surface detail)fabric
    (Bottomside)fabric



    Characteristics

    (Foodgrade)

    YES

    (Oil resistant)

    YES

    (Water retardant)

    YES

    (wear resistance)

    YES

    (Friction factor)

    YES

    (Antistatic)

    YES



    Technical data

    (Belt thickness)

    1.3mm

    (Weight)

    1.4kg/m²

    (Force at 1% elongation)

    9N/mm

    (Hardness topside)

    80A

    (Ambient temperature)

    –10℃  to 90℃

    (Min.pulley diameter flexxing)

    25mm

    (Standard belt width)

    2000mm

    (Maximum belt width)

    3400mm





    Note

    The above data is all in the standard conditions (temperature 23 humidity 50%). The results obtained through laboratory tests are not necessarily the same as the actual use of the product, so the data is only for the examination


    Customized

    Thickness

    0.8-120mm

    Width

    ≤3400mm

    Material

    PVC/PU

    Color

    Green, white, petrol green, black, grey, dark grey, dark green, sky blue, orange, yellow, transparent, etc.(According to you inquiry)

    Pattern

    According to you inquiry

    No. of Plies

    1ply, 2plies, 3plies, 4plies, and so on

    Coating's Feature

    Antistatic, thicker, harder, deeper, softer, fire-resistant, oil-resitant, cold-resistant,abrasion-resistant, etc.

    Fabric's Feature

    Flexible, kevlai, felt, low-noise,cotton
